| Categories | YU Series |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | CNLINKO |
| Model Number: | YU-USB3-FS-MP-1M-001 |
| MOQ: | 10 |
| Price: | $5.76-6.72 |
| Shape: | ROUND |
| IP level: | ip68 |
| Type: | usb |
| Application: | Data |
| Gender: | Male |
| Connector type: | usb connector |
| Withstanding Voltage: | 500V/AC |
| Durability: | 5000 circles |
| Material: | PBT,BLACK |
| Contact: | Copper Alloy |
| Coupling ring: | PA66,BLACK |
| Working Temperature: | -40℃ to 80℃ |
| Connecting mode: | quickly bayonet connect |
| waterproof rate: | ip67 |
| Rated current: | 1.5A |
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~Φ6.5mm |
| Contact diameter×Qty | 9 |
| Current rating(A) | 1.5A |
| Temperature rise | / |
| Withstanding voltage(AC.V)1min | 1000V |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |

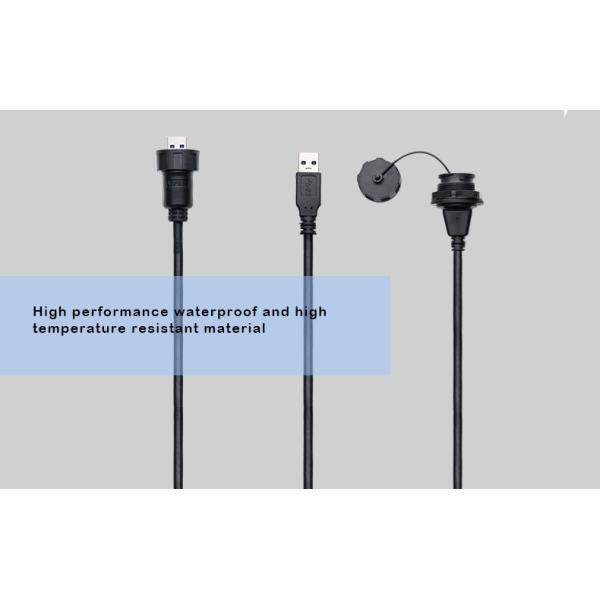

| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
|
